DM MUD GATE VALVE("DM"Series)

PRODUCT DESCRIPTION of DM MUD GATE VALVE("DM"Series)

The Mud Gate Valve,with superior design features precision workmanship and a proven priciple are engineered to meet the harsh drilling requirements in today's oilfield.

The Valve conforms to the standard thread dimensions and pressure rating of 3000 and 5000 PSI working pressure,the nominal size is 2",and temperature service up to 400 F.

The Valve standard trim includes 316SS Gates 316SS Stems and Buna N seats,optional trims are available which include Ni Plated Carbon Steel,Monel and Aluminum Bronze gates.Seats are offered in Viton and Hypalon and optional 303SS Stem is available.

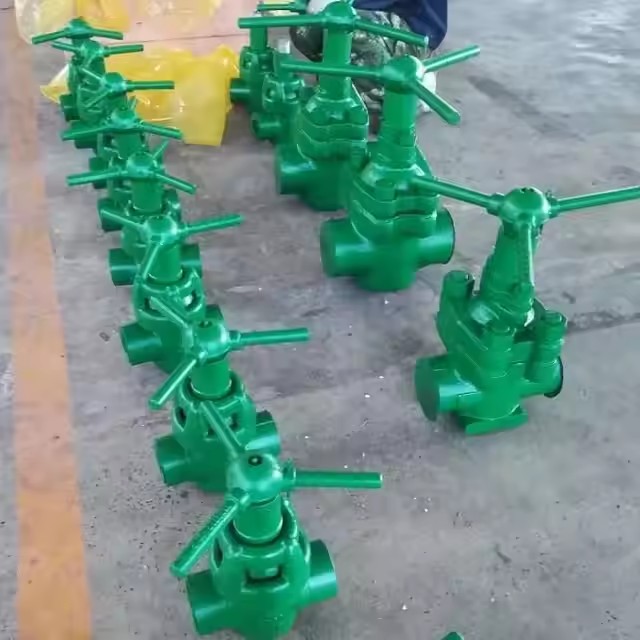

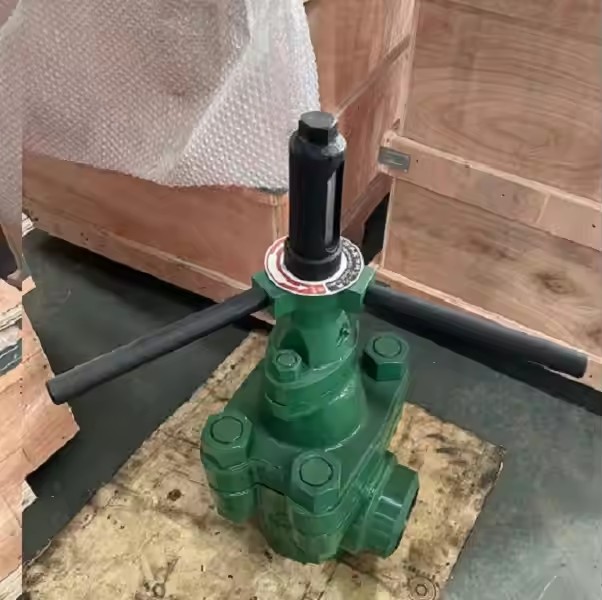

Product pictures of DM MUD GATE VALVE("DM"Series)

CONSTRUCTION

All the Valves conforms to thread dimensions in all pressure class ratings.The valves have rising stems that are driven by a double threaded hub for quick opening and closing with minimum torque.The permanently lubricated stems and stem screws are fully sealed,which get high and low pressure sealing through support ring.

APPLICATION FOR THE GATE VALVE

Mud pump lines and standpipe manifolds,oil and gas pipelines,sour gas and crude oil,corrosive water flood lines,cementing services,wellheads,well treating chemicals.

 ♦ Drilling and well-treating chemicals

 ♦ Sour gas and crude oil

 ♦ Abasive drilling mud

 ♦ Pipelines and manifolds

 ♦ Wellheads

 ♦ Water,oil and gas lines

 ♦ Cements and slurries

 ♦ Corrosive water flood lines

 ♦ Up to 5000psi and 400°c Fahrenheit services

Standard： API 6A

Nominal Size: 2”, 3”, 4”

Rated Pressure: 3000 PSI, 5000 PSI

Seal: Soft Seal, metal to metal

Temperature: PU, LU

Material Class: DD,EE,FF,HH

Connection: Flanged End, Hammer Union End, Threaded, Butt Weld End.
