Demco Mud Gate Valve

Product Name:

Demco Mud Gate Valve

No. :

Inquiry Us

Product Description

Demco Mud Gate Valve

Size: 2 inch 3inch 4 inch

Working Pressure: 5000psi 35mpa

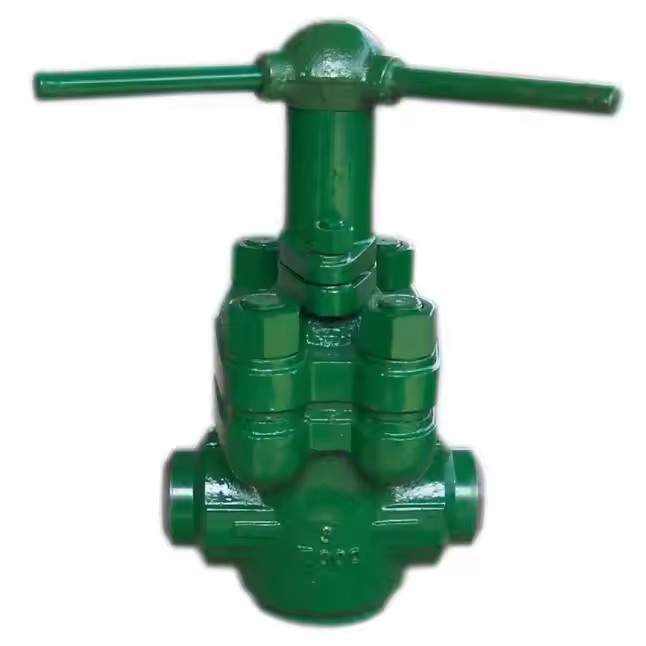

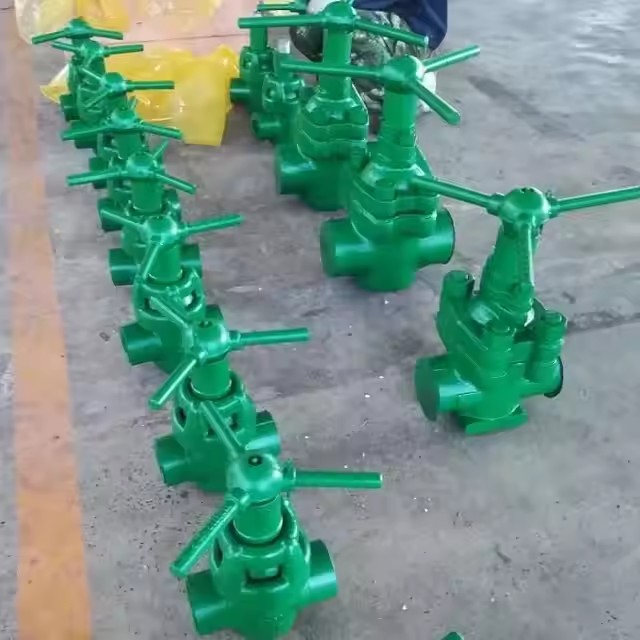

Product pictures of Demco Mud Gate Valve

2 inch Demco Mud gate valve.jpg

Manufactured and Tested in Accordance with API Spec 6A

Forged Steel Body and Bonnet

API 6A PSL 1, 2 and 3 available

Valve seat and gate are sealed by Metal to Metal Sealing

Low Operating Torque

Quick Release Hand Wheel

Factory Pressure Tested in Accordance with API.6A

Can be supplied with Flanged End Connections, Hammer Union Ends, Threaded Connections or Butt Weld Ends

Material Classes DD, EE, FF, to NACE MR-01-75

Available with Pressure Ratings 3000psi, 5000psi and 10000psi in 2", 3", 4", 5" Valve Sizes

Standard	API Spec 6A
Nominal size	2"~4"
Rated pressure	5000psi - 15000psi
Produce specification level	1-4
Performance Requirement	PR:1-2
Temperature level	K~U
Material level	AA,BB,CC,DD,EE,FF,HH
