3 inch low torque plug valve ,API 6A Plug Valve

The plug valve is a necessary part that is utilized on the high pressure manifold for the cementing and fracturing operations in oil field and also suitable to control over the similar high pressure fluid. Featuring the compact structure, easy maintenance, small torque, rapid opening and easy operation, the plug valve is ideal for the cementing and fracturing manifolds.

Working Principles and Features of API 6A Plug Valve, 3 inch low torque plug valve

The plug valve consists of the valve body, plug cap, plug and etc.

The plug valve is available with the union 1502 inlet and outlet preparations (also available upon customer request). The cylinder body inner wall and side segments work together with the rubber seal segments to provide sealing.

The metal-to-metal sealing is available between the side segments and cylinder plug, featuring high precision and reliability.

Note: the valve can be easily opened or closed even under the 10000psi high pressure.

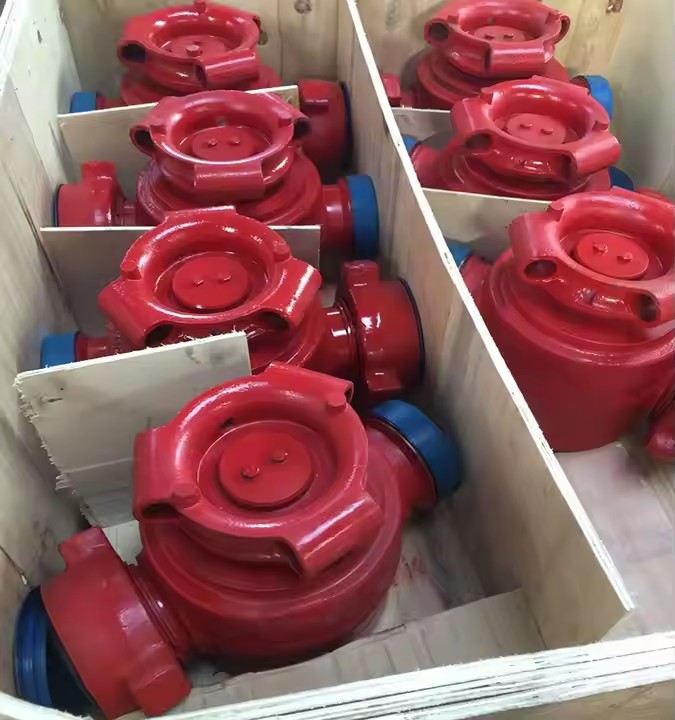

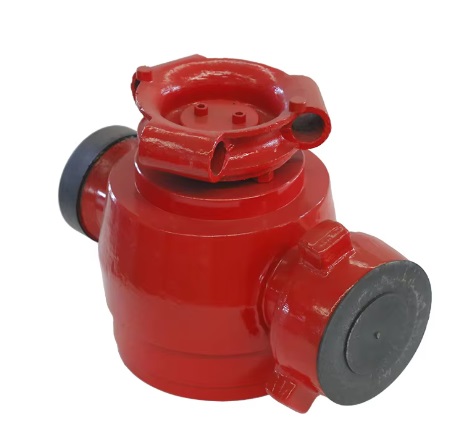

Product pictures of API 6A Plug Valve, 3 inch low torque plug valve

Specification of API 6A Plug Valve

Nominal Size · 1" ~ 3"

Temperature Rating -29~ 121(PU) , -46~ 121 (LU)

Service· Standard、Sour Gas H2S

Manufacturing standard·API 6A , NACE MR0175

Cold working pressures: 42Mpa (6000Psi), 70Mpa (10000Psi), 105Mpa (15000Psi).

Connection type: hammer union (Fig.602, Fig.1002, Fig.1502 MXM, MXF, and FXF), LP female thread and LP external thread and the

plug valve with bottom base can be designed upon the client’s request.
