hammer union NPT threaded

The Hammer Union are mainly used for connection between pipes or valves.

We can provide various hammer unions based on the introduced technologies from FMC, SPM, WECO,including thread connection type,welding type and H2S service unions. 1"-10" and CWP of 1000psi-20,000psi unions are available.For easy identification,unions with different pressure ratings will be painted in different colors,and there are evident marks indicating size,connecting mode and pressure ratings.

hammer union butt weld BW, Seal rings are made of quality rubber compound which greatly enhance load-bearing capacity and sealing performance and protect connectors from erosion.Different pressures and applications have different sealing method.

Wherever they are,wing nuts and right ACME will ensure quick installation or dismantling without special tools.

All unions are made in American system,and can be interchanged with products in international market.
Seal rings are fully interchangeable with equivalent products;
Marks of size and pressure in wing nuts are formed in die-forging model,same as international products.

Specifications of hammer union butt weld BW

Size: 1” --10”

Type: FIG 100, FIG 200, FIG 206, FIG 602, FIG 1002, FIG 1003, FIG 1502, FIG 2202

Connection: Butt weld, Threaded

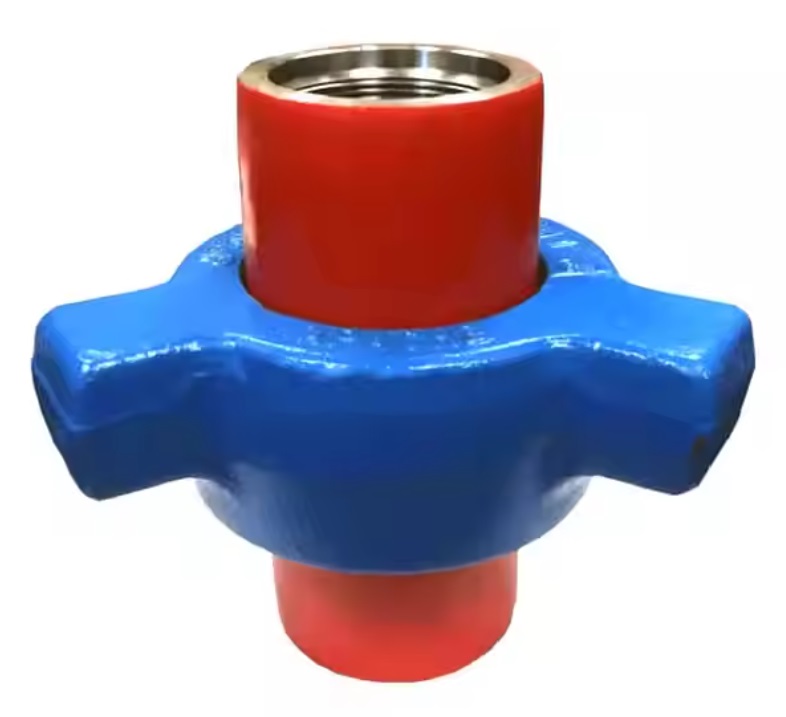

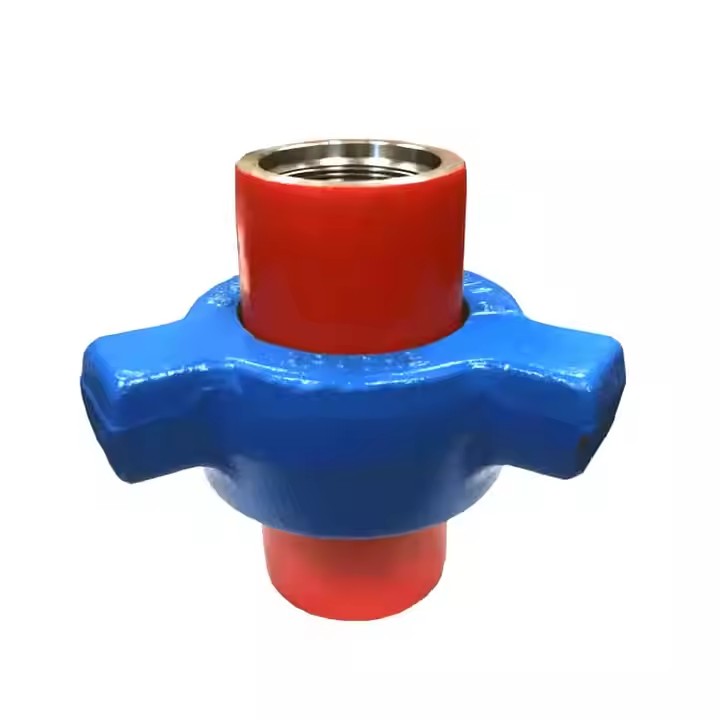

Product Pictures of hammer union butt weld BW
