API 6A Flange Adapter flange to union

Type: Flange to Union Male, Flange to Union Female

WECO Union Adapter Flanges are widely used in connection of different connectors for the oilfield wellhead, manifold, frac equipment etc. Our field-proven Weco Flanges are fully designed, manufactured, and tested in accordance with API 6A . The standard material is high quality integral forged AISI 4130 alloy steel. Other material are available upon

Specifications of API 6A Flange Adapter flange to union

Flange size: 1-1/16'' ~30'

Working Pressure: 2000 PSI --20000 PSI

Union Connection: Wing/ Thread

Union Size: 1” to 10”

Union Type: FIG 100，FIG 1502, FIG 2202

Material: Forging AISI 4130

Standard: API 6A

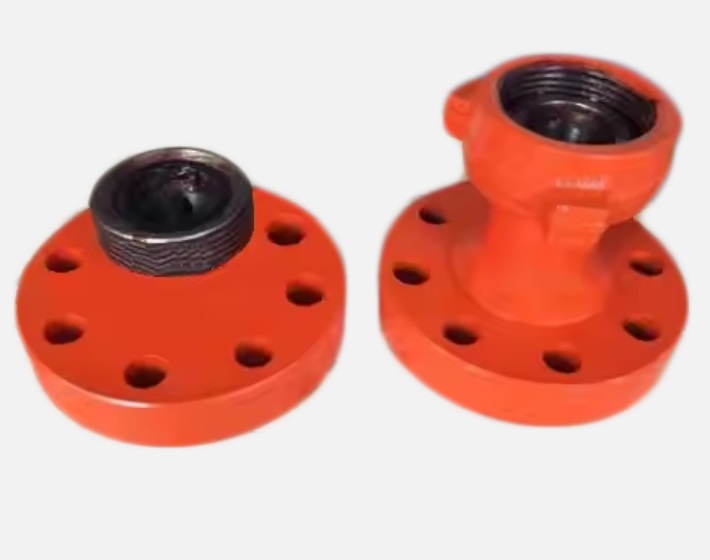

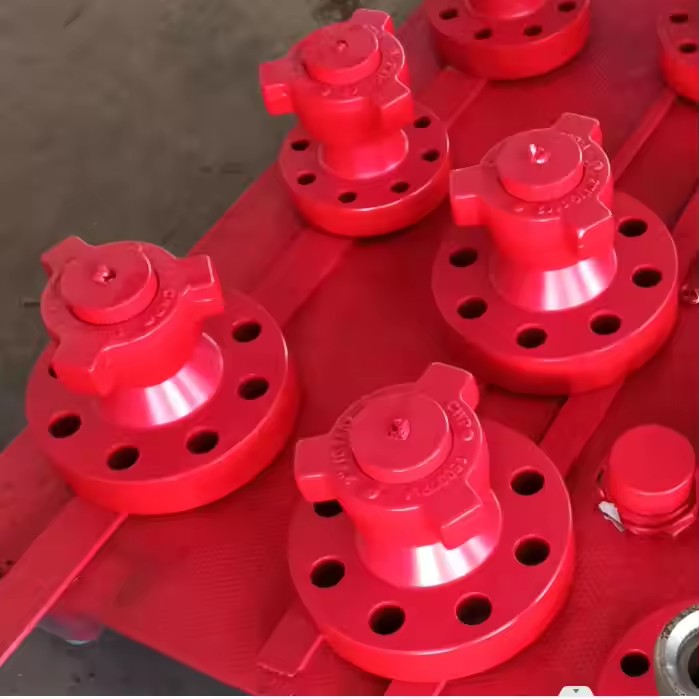

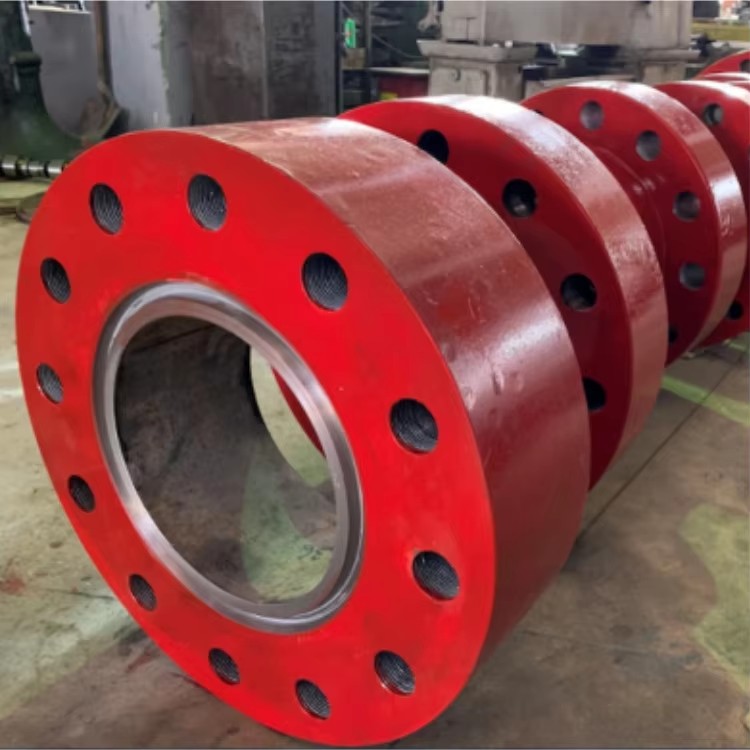

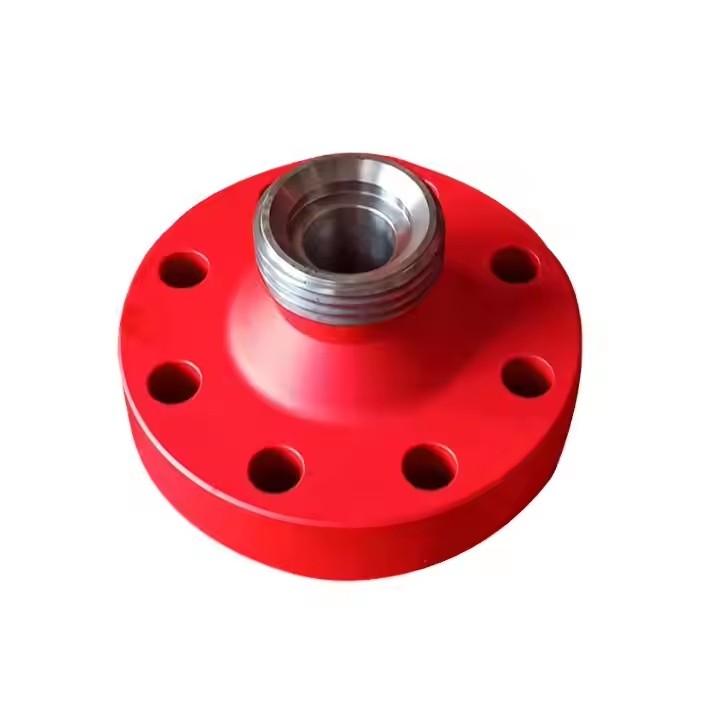

Product Pictures of API 6A Flange Adapter
