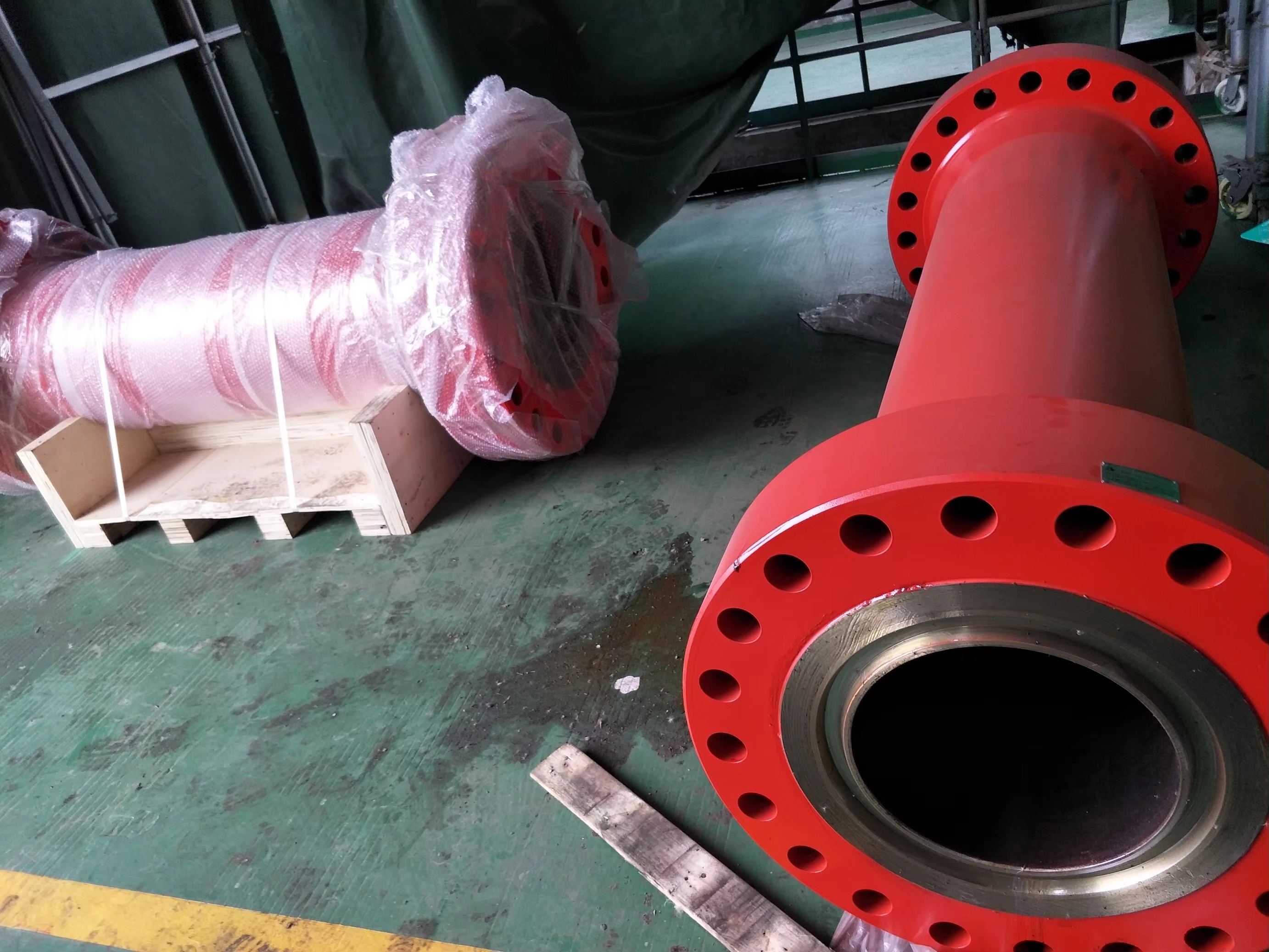

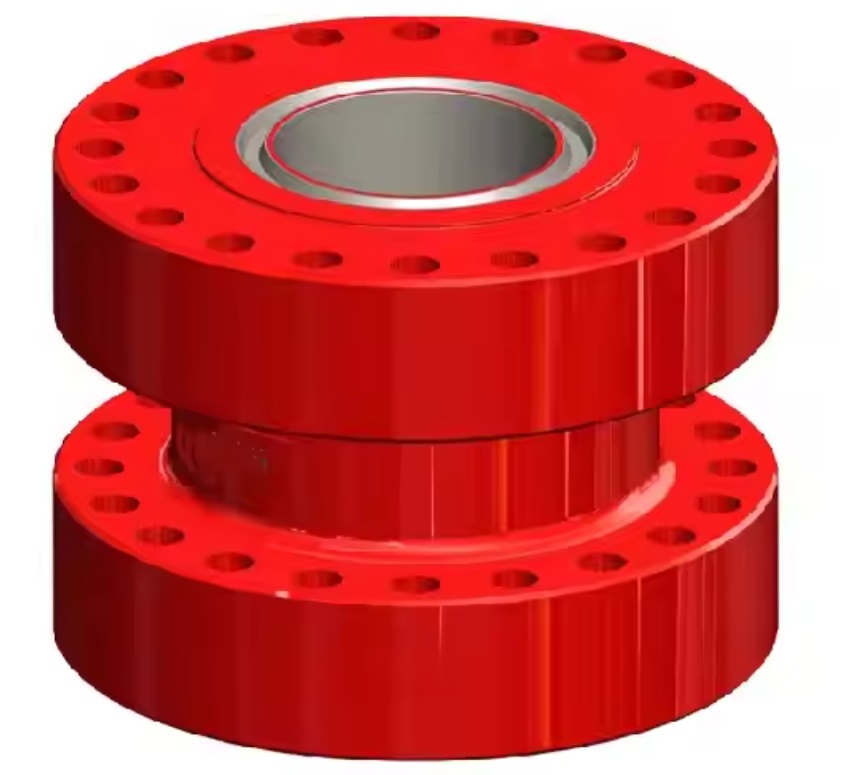

API 6A Spacer Spool

Spacer spool in all sizes and pressure ratings that are compliant to API 6A and API 16A. Spacer spools are suitable for wellhead extension, BOP installation, choke & kill manifold spools and production manifold. End connections are flanged, studded, threaded, clamp hubs . Some customers uses names like "riser spool" or "surface riser spools". Customer should specify the length accordingly to stack height. Each spool is pressure, drift and dimensionally tested before shipment.

API 6A Spacer Spool

Features:

1. Flanged, studded, and hubbed ends available, in any combination

2. Manufactured for any combination of size and pressure ratings

3. Spacer Spools designed to minimize length while allowing sufficient clearance for wrenches or clamps, unless otherwise specified by the customer

4. The standard design for Spacer Spools does not include outlets, although outlets can be added as specified

5. Available for general service and sour service in compliance with any temperature rating and material requirements specified in API specification 6A

6. Available with Stainless Steel 316L or Inconel 625 corrosion resistant alloy ring groove

API 6A Spacer Spool

Specification
